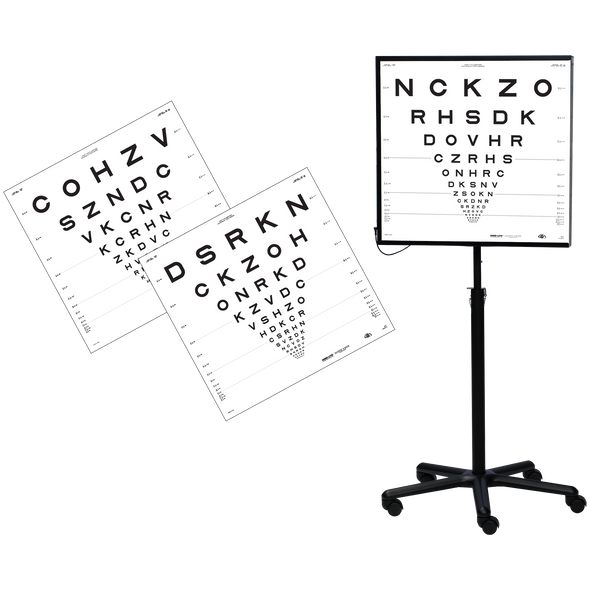

ESC2000 ETDRS CLINICAL TRIAL KIT WITH ORIGINAL SERIES 13FT/4M ETDRS CHARTS

The ESC2000 Illuminator Cabinet for Clinical Trials provides a uniform retro-illuminated testing surface, ideal for clinical testing of high Contrast and low Contrast LogMAR tests, including ETDRS, LEA SYMBOLS®, LEA NUMBERS®, E and C Charts, etc. The cabinet utilizes a pure-white LED light source. This illuminator, due to the use of new technology LEDs, has a much smaller footprint (only 3.0 inches deep) than traditional ETDRS light boxes. Previous illuminator cabinets use outdated “off the shelf” fluorescent bulbs, which due to the size of the bulbs and short bulb life, require a much larger cabinet (8 inches deep) and are more costly to operate.

The ESC provides for low-cost maintenance and usage. The LEDs have a 50,000 hour longevity (20+ years of normal use), compared to fluorescent bulbs, which have to be replaced every 2,000 hours or about once a year. Simply turn on the ESC device and it is ready for testing. For use outside the US, the ESC has a universal power supply that is easily adapted from 100V to 240V.

The ESC has a convenient storage cabinet for the safekeeping of additional charts when not in use.

The ESC2000 Features

  • Backlit LED light source which provides uniform constant luminance level
  • 3 preset luminance levels at 3, 85, and 160 cd/m2
  • Remote control included
  • ESC2000 is low maintenance with no bulbs to warm up, burn-in or replace
  • Universal power supply*
  • Chart storage in the back. Compatible with all existing high Contrast (black) ETDRS charts
  • NEI and FDA Approved

This kit includes

  • ESC2000 ETDRS, Viewer
  • 3 Original Series Charts: Chart R, Chart 1 & Chart 2 for 13 feet/4 meters testing distance
  • Floor Stand with casters

The ESC2000 is a sister-product to the ESV3000. The ESV3000 is designed for clinical trials and research. The ESV3000 provides an auto-calibrated light source for two luminance levels, photopic and mesopic, can be upgraded with a glare source, and is operated by wireless remote control.

Dimensions: Height 24.75" x Width 25.625" x Depth 3.0" (62.86 cm x 65.09 cm x 7.62 cm).

CE listed.

* Power plug adaptor may be needed for outlets outside the United States.



$2,514.95

500700

GOOD - LITE

chart

19 In Stock
